Buy or Sell HPE JL679A#ABB

New & Used HPE JL679A#ABB

HPE JL679A#ABB from ICP Networks

ICP Networks buy and sell HPE JL679A#ABB, and the large inventory of stock which we hold at our state of the art headquarters often allows us to offer same day shipping throughout the UK, with next day service across Europe and around the world on the parts you require.

Flexible procurement means flexible supply, and we can meet the demand for HPE JL679A#ABB, whether you’re looking for a single item or an integrated system, please contact our team by filling in our easy-to-use request form below.

Please request a quote on HPE JL679A#ABB
We're ready to help

New And Used HPE JL679A#ABB

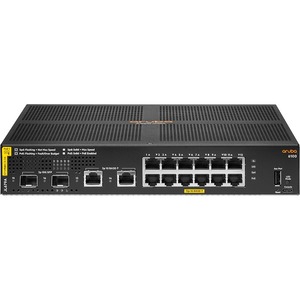

HPE 6100 Switch

  • jl679a-abb
  • HPE 61xxx Switches
  • 6100 Ethernet Switch

If for any reason you are unable to locate the HPE JL679A#ABB, or anything else you are looking for, please CONTACT one of our team.

ICP Networks stocks a wide range of new / used HPE JL679A#ABB, as well as the other JL679A#ABB Routers, Switches and IP Phones which will allow a business of any size to put together a state of the art communications network specifically tailored to meet its needs, both now and in the future.

We also buy back excess and unwanted IT and networking equipment which has a resale value, allowing our customers to realise the cash value of unwanted technology assets, or reduce the cost of an upgrade or installation. Call us on +44 1625 468 450 and our customer care team will take the time to set out all the options ICP Networks offers for building a system to exactly meet your needs.




HPE JL679A#ABB Specifications

General Information

Manufacturer Hewlett Packard Enterprise
Manufacturer Part Number JL679A#ABB
Manufacturer Website Address http://www.hpe.com
Brand Name HPE
Product Series 6100
Product Name 6100 Ethernet Switch
Product Type Ethernet Switch

Interfaces/Ports

Total Number of Network Ports 12
Uplink Port Yes
Modular Yes
Port/Expansion Slot Details 12 x Gigabit Ethernet PoE
2 x 10 Gigabit Ethernet Expansion Slot
2 x Gigabit Ethernet Uplink

Media & Performance

Media Type Supported Optical Fiber
Twisted Pair
Ethernet Technology Gigabit Ethernet
10 Gigabit Ethernet
Network Technology 10/100/1000Base-T
10GBase-X

I/O Expansions

Number of Total Expansion Slots 2
Expansion Slot Type SFP (mini-GBIC)
Number of SFP Slots 2

Network & Communication

Layer Supported 2

Management & Protocols

Manageable Yes

Power Description

PoE (RJ-45) Port Yes
PoE Budget 139 W
Input Voltage 230 V AC
120 V AC
Frequency 50 Hz
60 Hz
Power Source Power Supply
Number of Power Supplies Installed 1
Power Consumption 21.90 W

Physical Characteristics

Compatible Rack Unit 1U
Form Factor Wall Mountable
Rack-mountable
Height 43.9 mm
Width 254 mm
Depth 255 mm
Weight (Approximate) 2.78 kg

Miscellaneous

Environmentally Friendly Yes



Why Choose The HPE  6100 Switch JL679A#ABB?

PRODUCT OVERVIEW

The Aruba CX 6100 Switch Series is modern family of entry level access switches ideal for enterprise branch offices and SMB networks. Optimized for reliable, simple and secure access, the CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile and cloud applications.

The CX 6100 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 370W of PoE to support IoT devices such as security cameras and wireless APs, and includes a compact and fanless model ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the CX 6100 also simplifies ownership with no software licensing requirements.

PRODUCT DIFFERENTIATORS

AOS-CX - a modern software system

The Aruba CX 6100 Switch Series is based on AOS-CX, a modern, database-driven operating system that is built on a modular Linux architecture. This operating system provides the following unique capabilities:

  • Easy access to all network configuration state information
  • REST APIs for fine-grained programmability of network tasks
  • A micro-services architecture that enables full integration with other workflow systems and services
  • All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency
updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment and audit features. Capabilities include:
  • Centralized configuration with validation for consistency and compliance
  • Time savings via simultaneous viewing and editing of multiple configurations
  • Customized validation tests for corporate compliance and network design
  • Automated large-scale configuration deployment without programming
Note: A separate software license is required to use Aruba NetEdit.

Mobility and IoT performance

The Aruba CX 6100 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:
  • Up to 176 Gbps in non-blocking bandwidth and up to 98.6 Mpps for forwarding
  • Selectable queue configurations that allow for increased performance by defining a number of queues and associated memory buffering to best meet the requirements of network application
Simplify adds, moves and changes

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves and changes with colorless ports using local user roles and local-MAC-Authentication (LMA). Instead of statically pre-configuring access ports to VLANs and maintaining the switch port to VLAN mapping, colorless ports can automatically apply the role/policy required.

Enterprise-class access connectivity

To address branch office and small enterprise environments, the CX 6100 family includes five fixed 1U models. Each switch includes built-in high speed uplinks that auto-negotiate from 1GbE to 10GbE to deliver non-blocking performance. Additional highlights:
  • 1U models support 24 and 48 access ports of IEEE 802.3 1GbE with four built-in 1GbE/10GbE uplink SFP+ ports. The 24 and 48 port PoE models support up to 370W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port
