Flexible procurement means flexible supply, and we can meet the demand for HPE R9L64A whether you’re looking for a single item or an integrated system. The R9L64A is part of the HPE FlexNetwork 5140 Switch range. Please contact our team by filling in our easy-to-use request form below.

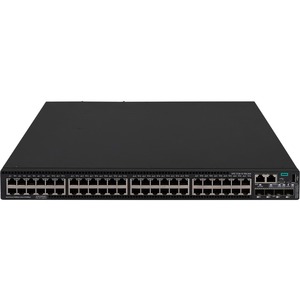

New And Used HPE R9L64AHPE FlexNetwork 5140 Switch
- r9l64a
- HPE FlexNetwork 51xxx Switches
If for any reason you are unable to locate the HPE R9L64A, or anything else you are looking for, please CONTACT one of our team.
ICP Networks stocks a wide range of new / used HPE R9L64A, as well as the other R9L64A Routers, Switches and IP Phones which will allow a business of any size to put together a state of the art communications network specifically tailored to meet its needs, both now and in the future.
We also buy back excess and unwanted IT and networking equipment which has a resale value, allowing our customers to realise the cash value of unwanted technology assets, or reduce the cost of an upgrade or installation. Call us on +44 1625 468 450 and our customer care team will take the time to set out all the options ICP Networks offers for building a system to exactly meet your needs.
HPE R9L64A Specifications
General Information
| Manufacturer | Hewlett Packard Enterprise |
|---|---|
| Manufacturer Part Number | R9L64A |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | FlexNetwork |
| Product Series | 5140 HI |
| Product Name | FlexNetwork 5140 48G PoE+ 4SFP+ HI Switch |
| Product Type | Ethernet Switch |
Interfaces/Ports
| Total Number of Network Ports | 48 |
|---|---|
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 48 x Gigabit Ethernet PoE+ |
| 4 x 10 Gigabit Ethernet Expansion Slot | |
| 1 x Expansion Slot |
Media & Performance
| Media Type Supported | Optical Fiber |
|---|---|
| Twisted Pair | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Network Technology | 10/100/1000Base-T |
| 10GBase-X |
I/O Expansions
| Number of Total Expansion Slots | 5 |
|---|---|
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
Network & Communication
| Layer Supported | 2 |
|---|---|
| Networking Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.1ad | |
| IEEE 802.1ak | |
| IEEE 802.1ae | |
| IEEE 802.3z | |
| IEEE 802.3x | |
| IEEE 802.3at | |
| IEEE 802.3af | |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3az | |
| IEEE 802.3i | |
| IEEE 802.1AX | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1v |
Management & Protocols
| Manageable | Yes |
|---|
Power Description
| PoE (RJ-45) Port | Yes |
|---|---|
| PoE Budget | 1.44 kW |
| Input Voltage | 120 V AC |
| 230 V AC | |
| 48 V DC | |
| 60 V DC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Source | Power Supply |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 1742 W |
Physical Characteristics
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
| Cabinet Mount | |
| Height | 43.4 mm |
| Width | 439.9 mm |
| Depth | 460 mm |
| Weight (Approximate) | 9.60 kg |
Miscellaneous
| Environmentally Friendly | Yes |
|---|
Why Choose The HPE FlexNetwork 5140 Switch R9L64A?
The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.
These switches offer high speed connectivity and flexibility with 10GbE uplinks, and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC), provides embedded network management, enhanced network visibility and automation.
FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches
- The HPE FlexNetwork 5140 HI Switch series uses Intelligent Resilient Framework (IRF) to support virtualization of up to nine physical switches into one logical device for simpler, flatter, more agile and resilient networks.
- Supports 10GbE uplinks, static and RIP routing, PoE+, ACLs, IPv6 for improved and cost-effective network performance.
- DRNI, enables link aggregation from multiple switches to implement device-level link backup for node redundancy. DRNI also provides access to the aggregate bandwidth and simplifies network topology by virtualizing two physical devices into a logical device.
- iNQA helps in measuring network packet loss performance, forward, reverse, and two-way packet loss, including lost number of messages and bytes, message loss and byte loss rate.
- Dual, redundant, hot-swappable power supplies maintain a dynamic and highly available network switch delivering up to 1440 Watts of PoE+ for powered cameras, phones, and wireless Access Points.
Robust Quality of Service (QoS)
- The HPE FlexNetwork 5140 HI Switch series supports advanced classifier based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information; it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or the entire switch.
- Provides extensive traffic prioritization with strict priority (SP) queuing, weighted round robin (WRR) and SP+WRR.
- Broadcast control and limitation of broadcast traffic rate can reduce unwanted network traffic and preserve more bandwidth for critical data.
