Manufacturer | Hewlett Packard Enterprise |
---|---|
Manufacturer Part Number | R9L63A |
Manufacturer Website Address | http://www.hpe.com |
Brand Name | HPE |
Product Line | FlexNetwork |
Product Series | 5140 HI |

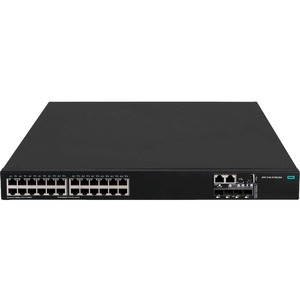

Product Name | FlexNetwork 5140 24G PoE+ 4SFP+ HI Switch |
Product Type | Ethernet Switch |
Total Number of Network Ports | 24 |
---|---|
Modular | Yes |
Network (RJ-45) | Yes |
Port/Expansion Slot Details | 24 x Gigabit Ethernet PoE+ |
4 x 10 Gigabit Ethernet Expansion Slot | |
1 x Expansion Slot |
Media Type Supported | Optical Fiber |
---|---|
Twisted Pair | |
Ethernet Technology | Gigabit Ethernet |
10 Gigabit Ethernet | |
Network Technology | 10/100/1000Base-T |
10GBase-X |
Number of Total Expansion Slots | 5 |
---|---|
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Layer Supported | 2 |
---|---|
Networking Standards | IEEE 802.3 |
IEEE 802.3u | |
IEEE 802.3ab | |
IEEE 802.1ad | |
IEEE 802.1ak | |
IEEE 802.1ae | |
IEEE 802.3z | |
IEEE 802.3x | |
IEEE 802.3at | |
IEEE 802.3af | |
IEEE 802.1w | |
IEEE 802.1x | |
IEEE 802.3ad | |
IEEE 802.3ae | |
IEEE 802.3az | |
IEEE 802.3i | |
IEEE 802.1AX | |
IEEE 802.1D | |
IEEE 802.1p | |
IEEE 802.1Q | |
IEEE 802.1s | |
IEEE 802.1v |
Manageable | Yes |
---|
PoE (RJ-45) Port | Yes |
---|---|
PoE Budget | 720 W |
Input Voltage | 120 V AC |
230 V AC | |
48 V DC | |
60 V DC | |
Frequency | 50 Hz |
60 Hz | |
Power Source | Power Supply |
Number of Power Supplies Supported | 2 |
Power Consumption | 928 W |
Compatible Rack Unit | 1U |
---|---|
Form Factor | Rack-mountable |
Cabinet Mount | |
Height | 43.4 mm |
Width | 439.9 mm |
Depth | 460 mm |
Weight (Approximate) | 9.20 kg |
Environmentally Friendly | Yes |
---|
The HPE FlexNetwork 5140 HI Switch series delivers high availability and scalability at the access layer of medium and large enterprise campus networks.
These switches offer high speed connectivity and flexibility with 10GbE uplinks, and combo ports. Support for add-on modules increases capacity or provides additional features. It is a highly cost-effective switch with abundant features such as DRNI and IRF for improved resiliency, QoS features for better reliability, iNQA for real time network health performance and capacity visibility, hardware based MACsec for end-to-end encrypted security and dual redundant power supplies with Energy Efficient Ethernet for improved power saving.
This Switch Series also includes Smart MC at no additional cost and combined with Intelligent Management Center (IMC), provides embedded network management, enhanced network visibility and automation.
FEATURES AND BENEFITS | Highly Resilient and Scalable Access Layer Switches
Robust Quality of Service (QoS)
