Flexible procurement means flexible supply, and we can meet the demand for HPE JQ077A, whether you’re looking for a single item or an integrated system, please contact our team by filling in our easy-to-use request form below.
If for any reason you are unable to locate the HPE JQ077A, or anything else you are looking for, please CONTACT one of our team.
ICP Networks stocks a wide range of new / used HPE JQ077A, as well as the other JQ077A Routers, Switches and IP Phones which will allow a business of any size to put together a state of the art communications network specifically tailored to meet its needs, both now and in the future.
We also buy back excess and unwanted IT and networking equipment which has a resale value, allowing our customers to realise the cash value of unwanted technology assets, or reduce the cost of an upgrade or installation. Call us on +44 1625 468 450 and our customer care team will take the time to set out all the options ICP Networks offers for building a system to exactly meet your needs.
| Manufacturer | Hewlett Packard Enterprise |
|---|---|
| Manufacturer Part Number | JQ077A |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | FlexFabric |
| Product Series | 5945 |

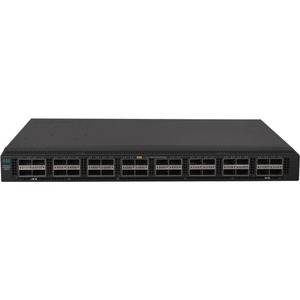

| Product Name | FlexFabric 5945 32QSFP28 Switch |
| Product Type | Ethernet Switch |
| Modular | Yes |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 32 x 100 Gigabit Ethernet Expansion Slot |
| 2 x Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber |
|---|---|
| Ethernet Technology | 100 Gigabit Ethernet |
| Gigabit Ethernet | |
| Network Technology | 100GBase-X |
| 1000Base-X |
| Number of Total Expansion Slots | 34 |
|---|---|
| Expansion Slot Type | QSFP28 |
| SFP | |
| Number of SFP Slots | 2 |
| Layer Supported | 3 |
|---|
| Manageable | Yes |
|---|
| Power Source | Power Supply |
|---|
| Height | 43.6 mm |
|---|---|
| Width | 400 mm |
| Depth | 460 mm |
| Weight (Approximate) | 13.10 kg |
The HPE FlexFabric 5945 Switch Series are high-density, ultra-low-latency, and top-of-rack (ToR) switches ideally suited for deployment at the aggregation or server access layer of large enterprise data centers. The HPE 5945 is also powerful enough for deployment at the core layer of medium-sized enterprises. With the increase in virtualized applications and server-to-server traffic, customers require spine and ToR switches that can meet their throughput requirements. With the HPE 5945, data centers can now support up to 100GbE per port, allowing high performance server connectivity and the capabilities to handle virtual environments. The HPE FlexFabric 5945 Switch Series provides choices that fit your budget and IT environment by cut-through with ultra-low-latency and wire speed, offering different port density and speeds of 100GbE/40GbE/25GbE/10GbE spine/ToR connectivity.
What’s new
Features
High-density, Advanced, Data Center Switches with HPE FlexFabric Network Analytics
The HPE FlexFabric 5945 Switch Series enables customers to scale their server-edge 1/10/25/40/100GbE top-of-rack (ToR) deployments with high-density 48 x 10GbE (SFP or BASE-T) with 6 x 40GbE ports, 48 x 10GbE (SFP or BASE-T) with 6 x 100GbE ports, 32 x 40GbE ports, and 32 x 100 GbE ports.
Available with a 2-slot modular version delivering two 40GbE or 100GbE ports, 48 x 10/25GbE, 4 x 100GbE, or up to 16 x 100GbE from modules.
A 4-slot modular version is also available with four 40GbE ports.
Includes HPE FlexFabric Network Analytics, which in conjunction with the HPE IMC Virtual Application Networking Fabric Manager, delivers real time visibility of microburst network congestion which negatively impacts overall network operations and performance.
High-performance Data Center Switching
The HPE FlexFabric 5945 Switch Series delivers up to 2.56 Tbps switching capacity for demanding data center applications.
Supports up to 1904 MPPS throughput for data-intensive environments.
Low latency, under 1µs for 40GbE, delivering increased network throughput.
VXLAN support for network virtualization and overlay solutions for improved flexibility. Includes Open vSwitch Database (OVSDB) for dynamic VXLAN tunnel management.
Business Agility and Resilience with Hewlett Packard Enterprise Comware 7
The HPE FlexFabric 5945 Switch Series delivers Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF) with <50 msec convergence time enabling faster application response time.
The In-Service Software Update (ISSU) enables high availability with modular updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
HPE FlexFabric 5945 Switch Series simplifies switch management by up to 88% with 9-unit Hewlett Packard Enterprise Intelligent Resilient Fabric (IRF).
No hidden costs with simple one license per switch for all operating system features.
All switch ports are active and ready to use without the need for activation licenses.
