| Manufacturer | Dell Technologies |
|---|---|
| Manufacturer Part Number | 210-ANCK |
| Manufacturer Website Address | http://www.dell.co.uk |
| Brand Name | Dell EMC |
| Product Series | S |
| Product Model | S5148F-ON |

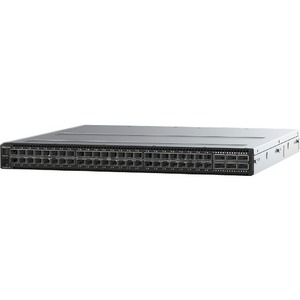

| Product Name | S5148F-ON Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Modular | Yes |
|---|---|
| Port/Expansion Slot Details | 48 x 25 Gigabit Ethernet Expansion Slot |
| 6 x 100 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber |
|---|---|
| Ethernet Technology | 25 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Network Technology | 25GBase-X |
| 100GBase-X |
| Number of Total Expansion Slots | 54 |
|---|---|
| Expansion Slot Type | SFP28 |
| QSFP28 |
| Layer Supported | 3 |
|---|
| Manageable | Yes |
|---|
| Power Source | Power Supply |
|---|---|
| Redundant Power Supply Supported | Yes |
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
| Height | 43.7 mm |
| Width | 434.3 mm |
| Depth | 457.2 mm |
| Weight (Approximate) | 9.98 kg |
| Environmentally Friendly | Yes |
|---|
The Dell EMC S5148 switch is an innovative, future-ready Top-of-Rack (ToR) open networking switch providing excellent capabilities and cost-effectiveness for the enterprise, mid-market, Tier2 cloud and NFV service providers with demanding compute and storage traffic environments.
The S5148F-ON 25GbE switch is Dell EMC’s latest disaggregated hardware and software data center networking solution that provides state-of-the-art data plane programmability, backward compatible 25GbE server port connections, 100GbE uplinks, storage optimized architecture, and a broad range of functionality to meet the growing demands of today’s data center environment now and in the future.
The compact S5148F-ON model design provides industry-leading density with up to 72 ports of 25GbE or up to 48 ports of 25GbE and 6 ports of 100GbE in a 1RU form factor.
Using industry-leading hardware and a choice of Dell EMC’s OS10 or select 3rd party network operating systems and tools, the S5148F- ON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S5148F-ON model provides multi rate speed enabling denser footprints and simplifying migration to 25GbE server connections and 100GbE fabrics.
Data plane programmability allows the S5148F-ON to meet the demands of the converged software defined data center by offering support for any future or emerging protocols, including hardware- based VXLAN (Layer 2 and Layer 3 gateway) support. Priority- based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S5148F-ON an excellent choice for DCB environments.
The Dell EMC S5148F-ON model supports the open source Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems.
Maximum performance and functionality
The Dell EMC Networking S-Series S5148F-ON is a high-performance, multi-function, 10/25/40/50/100 GbE ToR switch purpose-built for applications in high-performance data center, cloud and computing environments.
In addition, the S5148F-ON incorporates multiple architectural features that optimize data center network flexibility, efficiency, and availability, including IO panel to PSU airflow or PSU to IO panel airflow for hot/ cold aisle environments, and redundant, hot-swappable power supplies and fans.
