Buy or Sell EMC S4048T-ON

New & Used EMC S4048T-ON

EMC S4048T-ON from ICP Networks

ICP Networks buy and sell EMC S4048T-ON, and the large inventory of stock which we hold at our state of the art headquarters often allows us to offer same day shipping throughout the UK, with next day service across Europe and around the world on the parts you require.

Flexible procurement means flexible supply, and we can meet the demand for EMC S4048T-ON, whether you’re looking for a single item or an integrated system, please contact our team by filling in our easy-to-use request form below.

Please request a quote on EMC S4048T-ON
We're ready to help

New And Used EMC S4048T-ON

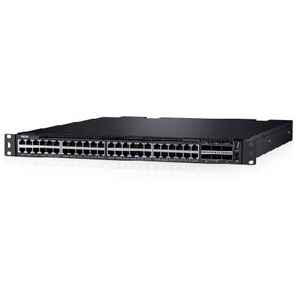

EMC PowerSwitch S Switch

  • s4048t-on
  • EMC PowerSwitch Switches
  • PowerSwitch S4048T-ON Switch

If for any reason you are unable to locate the EMC S4048T-ON, or anything else you are looking for, please CONTACT one of our team.

ICP Networks stocks a wide range of new / used EMC S4048T-ON, as well as the other S4048T-ON Routers, Switches and IP Phones which will allow a business of any size to put together a state of the art communications network specifically tailored to meet its needs, both now and in the future.

We also buy back excess and unwanted IT and networking equipment which has a resale value, allowing our customers to realise the cash value of unwanted technology assets, or reduce the cost of an upgrade or installation. Call us on +44 1625 468 450 and our customer care team will take the time to set out all the options ICP Networks offers for building a system to exactly meet your needs.




EMC S4048T-ON Specifications

General Information

Manufacturer Dell Technologies
Manufacturer Part Number S4048T-ON
Manufacturer Website Address http://www.dell.co.uk
Brand Name Dell EMC
Product Line PowerSwitch
Product Series S-Series
Product Model S4048T-ON
Product Name PowerSwitch S4048T-ON Switch
Product Type Ethernet Switch

Interfaces/Ports

Total Number of Network Ports 48
Uplink Port Yes
Modular Yes
Port/Expansion Slot Details 48 x 10 Gigabit Ethernet Network
6 x 40 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported Optical Fiber
Twisted Pair
Ethernet Technology 10 Gigabit Ethernet
40 Gigabit Ethernet
Network Technology 10GBase-T
40GBase-X

I/O Expansions

Number of Total Expansion Slots 54
Expansion Slot Type SFP+
QSFP+
Number of SFP+ Slots 48

Network & Communication

Layer Supported 3

Management & Protocols

Manageable Yes

Power Description

Input Voltage 120 V AC
230 V AC
Frequency 50 Hz
60 Hz
Power Source Power Supply
Redundant Power Supply Supported Yes
Number of Power Supplies Supported 2
Number of Power Supplies Installed 2
Power Consumption 460 W

Physical Characteristics

Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 43.4 mm
Width 434.1 mm
Depth 460 mm
Weight (Approximate) 10.43 kg



Why Choose The EMC  PowerSwitch S Switch S4048T-ON?

Energy-efficient 10GBASE-T top-of-rack switch optimized for data center efficiency

The Dell EMC PowerSwitch S4048T-ON switch is the industry’s latest data center networking solution, empowering organizations to deploy modern workloads and applications designed for the open networking era.

Businesses who have made the transition away from monolithic proprietary mainframe systems to industry standard server platforms can now enjoy even greater benefits from Dell Technologies’ open networking platforms. By using industry-leading hardware and a choice of leading network operating systems to simplify data center fabric orchestration and automation, organizations can tailor their network to their unique requirements and accelerate innovation.

These new offerings provide the needed flexibility to transform data centers. High-capacity network fabrics are cost-effective and easy to deploy, providing a clear path to the software-defined data center of the future with no vendor lock-in. The S4048T-ON supports the open source Open Network Install Environment (ONIE) for zero-touch installation of alternate network operating systems, including feature rich Dell EMC Networking OS9 and Dell EMC SmartFabric OS10.

High density 1/10G BASE-T switch

The Dell EMC PowerSwitch S-Series S4048T-ON is a high-density 100M/1G/10G/40GbE top-of-rack (ToR) switch purpose-built for applications in high-performance data center and computing environments. Leveraging a non-blocking switching architecture, the S4048T-ON delivers line-rate L2 and L3 forwarding capacity within a conservative power budget. The compact S4048T-ON design provides industry-leading density of 48 dual-speed 1/10G BASE-T (RJ45) ports, as well as six 40GbE QSFP+ up-links to conserve valuable rack space and simplify the migration to 40Gbps in the data center core. Each 40GbE QSFP+ up-link can also support four 10GbE (SFP+) ports with a breakout cable. In addition, the S4048TON incorporates multiple architectural features that optimize data center network flexibility, efficiency and availability, including I/O panel to PSU airflow or PSU to I/O panel airflow for hot/cold aisle environments, and redundant, hot-swappable power supplies and fans. S4048T-ON supports feature-rich Dell EMC Networking OS9 and Dell EMC SmartFabric OS10, VLT, network virtualization features such as VRF-lite, VXLAN Gateway and support for Dell Embedded Open Automation Framework.

  • The S4048T-ON is the only switch in the industry that supports traditional network-centric virtualization (VRF) and hypervisor centric virtualization (VXLAN). The switch fully supports L2 VXLAN gateway function and has hardware support for L3 VXLAN routing.
  • The S4048T-ON also supports Dell Technologies’ Embedded Open Automation Framework, which provides enhanced network automation and virtualization capabilities for virtual data center environments.
  • The Open Automation Framework comprises a suite of interrelated network management tools that can be used together or independently to provide a network that is flexible, available and manageable while helping to reduce operational expenses.
Key applications

Dynamic data centers ready to make the transition to softwaredefined environments
  • High-density 10Gbase-T ToR server access in high-performance data center environments
  • Lossless iSCSI storage deployments that can benefit from innovative iSCSI & DCB optimizations that are unique only to Dell Networking switches
