Flexible procurement means flexible supply, and we can meet the demand for EMC 210-ALTF, whether you’re looking for a single item or an integrated system, please contact our team by filling in our easy-to-use request form below.
If for any reason you are unable to locate the EMC 210-ALTF, or anything else you are looking for, please CONTACT one of our team.
ICP Networks stocks a wide range of new / used EMC 210-ALTF, as well as the other 210-ALTF Routers, Switches and IP Phones which will allow a business of any size to put together a state of the art communications network specifically tailored to meet its needs, both now and in the future.
We also buy back excess and unwanted IT and networking equipment which has a resale value, allowing our customers to realise the cash value of unwanted technology assets, or reduce the cost of an upgrade or installation. Call us on +44 1625 468 450 and our customer care team will take the time to set out all the options ICP Networks offers for building a system to exactly meet your needs.
| Manufacturer | Dell Technologies |
|---|---|
| Manufacturer Part Number | 210-ALTF |
| Manufacturer Website Address | http://www.dell.co.uk |
| Brand Name | Dell EMC |
| Product Series | S4100-ON |
| Product Model | S4128F-ON |
| Product Name | S4128F-ON Ethernet Switch |
| Product Type | Ethernet Switch |
| Uplink Port | Yes |
|---|---|
| Modular | Yes |
| Port/Expansion Slot Details | 28 x 10 Gigabit Ethernet Expansion Slot |
| 2 x 100 Gigabit Ethernet Expansion Slot |
| Media Type Supported | Optical Fiber |
|---|---|
| Ethernet Technology | 10 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Network Technology | 10GBase-X |
| 100GBase-X |
| Number of Total Expansion Slots | 30 |
|---|---|
| Expansion Slot Type | SFP+ |
| QSFP28 | |
| Number of SFP+ Slots | 28 |
| Layer Supported | 3 |
|---|
| Manageable | Yes |
|---|
| Input Voltage | 120 V AC |
|---|---|
| 230 V AC | |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 260 W |
| Compatible Rack Unit | 1U |
|---|---|
| Form Factor | Rack-mountable |
| Height | 44.5 mm |
| Width | 431.8 mm |
| Depth | 457.2 mm |
| Weight (Approximate) | 8.92 kg |

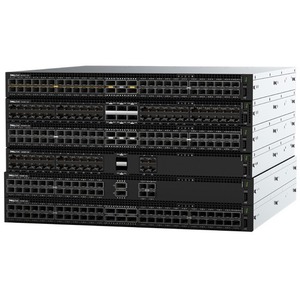

DELL EMC POWERSWITCH S4100-ON
High-performance open networking top-of-rack switches with multirate Gigabit Ethernet and unified ports
The S4100-ON 10GbE switches comprise DellTechnologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art 100GbE uplinks, fibre channel connectivity and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation top-of-rack open networking switches offer optimum flexibility and cost-effectiveness for the enterprise, midmarket and tier 2 cloud service providers with demanding compute and storage traffic environments.
The compact S4100-ON models provide industry-leading density with up to 48 ports of 10GbE or up to 48 ports of 10GBaseT ports, 2 ports of 40GbE and 4 ports of 100GbE in a 1RU form factor. The S4148U-ON model can support up to 28 8/16G fibre channel ports, or 16 ports of 32G fibre channel ports. The S4112-ON is a half-rack width model that supports up to 12 ports of 10GbE or 12 ports 10GBaseT, and 3 ports of 100GbE.
Using industry-leading hardware and a choice of Dell EMC SmartFabric OS10 or select 3rd party network operating systems and tools, the S4100-ON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S4100-ON models provide multirate speed, enabling denser footprints and simplifying migration to 100Gbps. Also unique to the S4100-ON series is the ability to meet the demands of converged and virtualized data centers by offering unified ports (S4148U) and hardware support for L2 and L3 VXLAN Gateway. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S4100-ON ideally suited for DCB environments. Dell EMC PowerSwitch S4100-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC SmartFabric OS10 networking operating system, as well as of alternative network operating systems
Maximum performance and functionality
The S4100-ON series are high-performance, multifunction, 1/10/25/40/50/100 GbE and 8/16/32G FC top-of-rack (ToR) switches purpose-built for applications in high-performance data center, cloud and computing environments. Architectural features to optimize data center network flexibility, efficiency and availability include IO panel to PSU airflow or PSU to IO panel airflow for hot/cold aisle environments and redundant, hot-swappable power supplies and fans.
Key applications
If for any reason you are unable to locate the EMC 210-ALTF, or anything else you are looking for, please CONTACT one of our team.
Put simply, you should choose ICP Networks to provide your EMC networking solutions because you can trust us.
You can take a look at the many accreditations and awards we've received, you can read the glowing comments of the many people we've done business with over more than a decade and, best of all, you can get in touch and find out exactly what were able to do for you. From a single piece of equipment to a complex and multifaceted system, no matter what your EMC needs are, we`ll be able to meet them.
Order before 4pm and we guarantee next day delivery via one of the army of couriers we utilise. Whether the item you purchase is brand new, end of sale, pre-owned or refurbished, it comes with our guarantee of excellence, and a promise that the recycling of IT equipment doesn't represent any drop off in quality.
On the contrary, our commitment to Green IT - manifested in the state of the art headquarters in which we are based - ensures we always go the extra mile to deliver exactly what our clients need at a price which represents the best possible value. By choosing ICP Networks a business or other organisation can access hardware such as EMC routers and gateways which might otherwise have been beyond their reach.
The fact that EMC are constantly innovating and trying to keep pace with the shifting business environment means that customers who choose ICP Networks to meet their needs can do the same, equipping themselves to handle the challenges of tomorrow whilst exploiting the opportunities of today. If you've got any questions then please bring them to a member of our customer care team, and we'll do our best to furnish the answers.
If for any reason you are unable to locate the type of EMC networking hardware, or anything else you are looking for, please CONTACT one of our team.
