Buy or Sell Dell EMC S5200 L3 Switch

Why Choose Dell EMC Dell EMC S5200 L3 Switch?

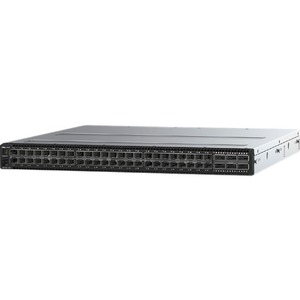

The S5200-ON 25/100GbE fixed switches comprise Dell EMC’s latest disaggregated hardware and software data center networking solutions, providing state-of-the-art, high-density 25/100GbE ports and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation open networking switches offer optimum flexibility and costeffectiveness for web 2.0, enterprise, mid- market and cloud service provider with demanding compute and storage traffic environments.

The S5200-ON is a complete family of switches: 48-port 25GbE/100GbE ToR switch, 96-port 25GbE/100GbE Middle of Row (MoR)/End of Row (EoR) switch, and a 32-port 100GbE Multi-Rate Spine/Leaf switch. From the traditional 48-port ToR, to the high density S5296F-ON for Middle of Row deployments, the S5200- ON series offers performance and flexibility for a variety of network designs.

In addition to 100GbE Spine/Leaf deployments, the S5232F-ON can also be used in high density deployments using breakout cables to achieve up to 128 10GbE or 128 25GbE ports.

Using industry-leading hardware and a choice of Dell EMC’s OS10 or select 3rd party network operating systems and tools, the S5200-ON switches incorporate multiple architectural features that optimize data center network flexibility, efficiency and availability, including IO panel to PSU or PSU to IO panel airflow for hot/cold aisle environments, redundant, hot-swappable power supplies and fans and deliver nonblocking performance for workloads sensitive to packet loss.

Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S5200-ON family ideally suited for DCB environments.

Dell EMC Networking S5200-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC’s OS10 networking operating system, as well as alternative network operating systems.

Key applications

• Organizations looking to enter the software-defined data center era with a choice of networking technologies designed to maximize flexibility
• High-density 10/25GbE ToR server aggregation in high-performance data center environments at the desired fabric speed with the S5248F-ON or S5296F-ON
• Small-scale Fabric implementation via the S5232F-ON switch in leaf and spine along with S5248F-ON 1/10/25GbE ToR switches enabling cost-effective aggregation of 10/25/40/50/100 uplinks
• Multi-functional 10/25/40/50/100GbE switching in High Performance Computing Clusters or other business-sensitive deployments requiring the highest bandwidth.
• iSCSI deployments, including DCB converged lossless transactions
• Single-pass VXLAN routing (future software release)

• 1 or 2RU high-density ToR switches with up to 48 or 96 ports of 25GbE or 32 ports of 100GbE
• Multi-rate 100GbE ports support 10/25/40/50/100GbE
• Scalable L2 and L3 Ethernet switching with QoS and a full complement of standards-based IPv4 and IPv6 features, including OSPF and BGP routing support
• Line-rate performance via non-blocking switch fabrics: 3.2Tbps on S5296F-ON and S5232F-ON, and 2.0Tbps on S5248F-ON
• L2 multipath support via Virtual Link Trunking (VLT) and Routed VLT support
• VXLAN gateway functionality support for bridging and routing the non-virtualized and the virtualized overlay networks with line rate performance (hardware only)
• Support for OS10 Enterprise Edition
• Converged network support for DCB, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV support
