Buy or Sell Avaya AL4500B22-E6

New & Used Avaya AL4500B22-E6

Avaya AL4500B22-E6 from ICP Networks

ICP Networks buy and sell Avaya AL4500B22-E6, and the large inventory of stock which we hold at our state of the art headquarters often allows us to offer same day shipping throughout the UK, with next day service across Europe and around the world on the parts you require.

Flexible procurement means flexible supply, and we can meet the demand for Avaya AL4500B22-E6, whether you’re looking for a single item or an integrated system, please contact our team by filling in our easy-to-use request form below.

Please request a quote on Avaya AL4500B22-E6
We're ready to help

New And Used Avaya AL4500B22-E6

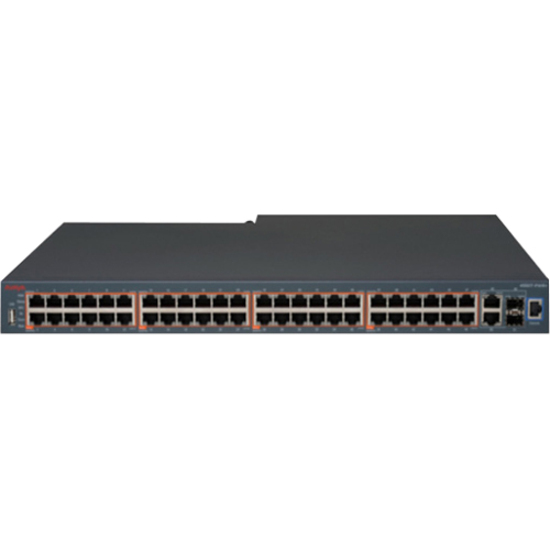

Avaya 4500 ERS L3 Switch

  • AL4500B22-E6
  • Avaya 4500 ERS L3 Switch
  • ERS 4550T-PWR+ Layer 3 Switch

If for any reason you are unable to locate the Avaya AL4500B22-E6, or anything else you are looking for, please CONTACT one of our team.

ICP Networks stocks a wide range of new / used Avaya AL4500B22-E6, as well as the other AL4500B22-E6 Routers, Switches and IP Phones which will allow a business of any size to put together a state of the art communications network specifically tailored to meet its needs, both now and in the future.

We also buy back excess and unwanted IT and networking equipment which has a resale value, allowing our customers to realise the cash value of unwanted technology assets, or reduce the cost of an upgrade or installation. Call us on +44 1625 468 450 and our customer care team will take the time to set out all the options ICP Networks offers for building a system to exactly meet your needs.




Avaya AL4500B22-E6 Specifications

General Information

Manufacturer Avaya, Inc
Manufacturer Part Number AL4500B22-E6
Manufacturer Website Address http://www.avaya.co.uk
Brand Name Avaya
Product Series 4500
Product Model ERS 4550T-PWR+
Product Name ERS 4550T-PWR+ Layer 3 Switch
Product Type Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Uplink Port Yes
Bypass No
Modular No
Management Port Yes
Number of PoE+ (RJ-45) Ports 48
Number of Stack Ports 2
Stack Port Yes
Port/Expansion Slot Details 48 x Fast Ethernet Network
2 x Gigabit Ethernet Expansion Slot
2 x Gigabit Ethernet Uplink

Media & Performance

Media Type Supported Twisted Pair
Ethernet Technology Fast Ethernet
Gigabit Ethernet
Network Technology 10/100Base-TX
10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots 2
Expansion Slot Type SFP
Shared SFP Slot Yes
Number of SFP Slots 2

Network & Communication

Layer Supported 3

Management & Protocols

Manageable Yes
Management
  • Web-based Management
  • Telnet
  • VLAN
  • SNMP v1, v2c, v3
  • MIB II
  • RMON
  • DHCP
  • QoS

Memory

Standard Memory 256 MB

Reliability

MTBF 311104 Hour

Power Description

PoE (RJ-45) Port Yes
Input Voltage 110 V AC
220 V AC
Power Source Power Supply
Redundant Power Supply Supported Yes

Physical Characteristics

Compatible Rack Unit 1U
Form Factor Rack-mountable
Desktop
Height 44 mm
Width 440 mm
Depth 436.8 mm
Weight (Approximate) 11.83 kg

Miscellaneous

Certifications & Standards IEEE Standards:
  • 802.1ab
  • 802.3
  • 802.3u
  • 802.3x
  • 802.3z
  • 802.3ab
  • 802.3ad
  • 802.3ae
  • 802.3af
  • 802.3at
Safety:
  • IEC 60950
  • CB Scheme
  • EN60950
  • UL60950
  • CSA22.2, #60950
  • NOM
  • S-mark
  • Anatel
EMC:
  • Anatel Brazilian EMC Certification
  • CISPR22
  • CIRPR24
  • EN55022:2006
  • EN55024
  • EN61000
  • FCC Part 15
  • ICES-003
  • VCCI
  • AN/NZS 3548
  • CNS13438
  • MIC
Country of Origin China



Why Choose The Avaya  4500 ERS L3 Switch AL4500B22-E6?

A high performance, high density option for wiring closets where IEEE 802.3at PoE+ and/or integrated field replaceable power supplies are required, this switch offers 48 ports of 10/100 with PoE/PoE+ in addition to two 10/100/1000/SFP combo uplink ports.
